VACUUM PUMP UNITS

Features:
1. High Pumping Speed
2. Short Pumpdown Time
3. Model JK and JTK 10-2-10-4 Pa
    Model JF 10-2-10-4 Pa
4. Producing Clean Vacuum by Model JF Units

Applications:
1. Chemical Engineering
2. Petroleum Industry
3. Elegtronics Industry
4. Vacuum Metallurgy

Note:Offer Ultra-High Vacuum Unit with its Ultimate Pressure lower than 10-8 Pa to meet the customer requirements

Option
To meet your application demands, you can choose Fig.1 for Model JK and JTK 200 (or less than 200) diffusion pump units, Fig.2 and fig.3 for Models JK and JTK (or more than 300) diffusion pump units, FigA for Model JF turbomo­lecular pump unit.

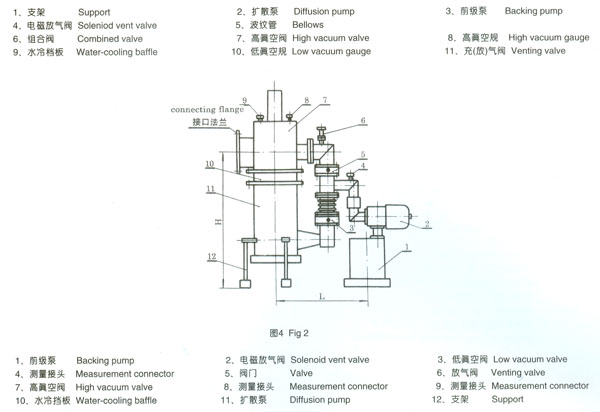

Outline of Model JK Diffusion Pump Unit

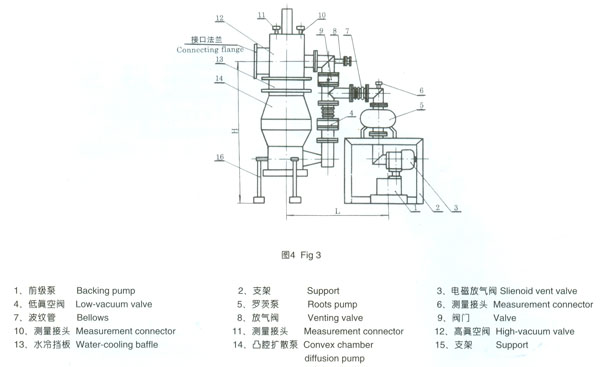

Outline of Model JTK Diffusion Pump Unit
